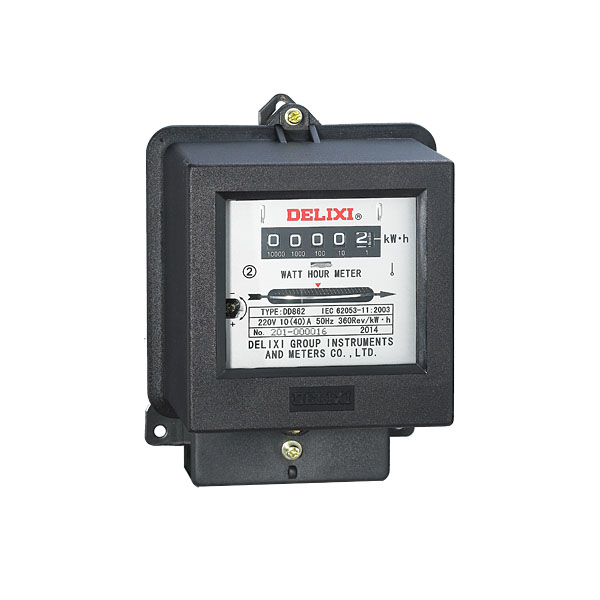

This product contains the following details
| Product name | Voltage | Accuracy class | 1）Specification | Function requirements | Function requirements |
| DD862 | M | 2 | 6M4 | H | PC□ |
| M: 220V | 2: Class 2 |
6M4: 1.5 (6) A … 100M3: 30 (100) A |
Default: Connect Directly:
S: Dual-direction VT/CT |
Default: ABS Case PC PC Case AS: Transparent AS Case |
| Voltage (V) | Accuracy class | Current Spec. | 2) Ordering code |
| 220 | 2 | 1.5 (6) A | DD862M26M4* |
| 3 (6) A | DD862M26M2* | ||
| 2.5 (10) A | DD862M210M4* | ||
| 5 (20) A | DD862M220M4* | ||
| 10 (40) A | DD862M240M4* | ||
| 15 (60) A | DD862M260M4* | ||
| 20 (80) A | DD862M280M4* | ||
| 30 (100) A | DD862M2100M3* |
Note: 1) "M" in the specification code represents multiple of current.
2) The function of connection via VT/CT is only available for 1.5(6)A & 3(6)A meters.
Order Information:
The Ordering code for a three-phase four-wire electronic active/ reactive integrated energy meter (220V, Class 2, 1.5 (6)A, connected via CT/VT, ABS case) is DD862M26M4H.
■Certificate: ZZ No. 00000321
■International Standard: IEC 62053-11
■National Standard: GB/T 17215.311
■High-quality silicon steel sheet is used for voltage & current iron core, manufactured through lap riveting by high-speed puncher.
■Dual-jewel Bearing is used for rotation component for stable and reliable rotation.
■The die-casting arch frame is made from high-strength Aluminium alloy ingot, which is not easy to deform.
■Plastic sealing technology is adopted for voltage coil for good tightness, and the coil can withstand 6kV pulse voltage.
| Current Specifications | A | 1.5(6), 3(6), 2.5(10), 5(20), 10(40), 15(60), 20(80), 30(100) |
| Reference Voltage | V | 220 |
| Reference frequency | HZ | 50 |
| Accuracy class | Class | 2 |
| Power Consumption | W | ≦1.2 |
| Product Name | Specification（A） |

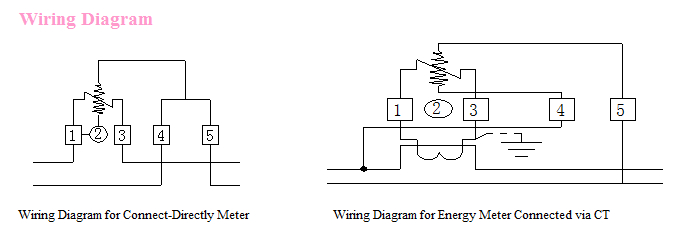

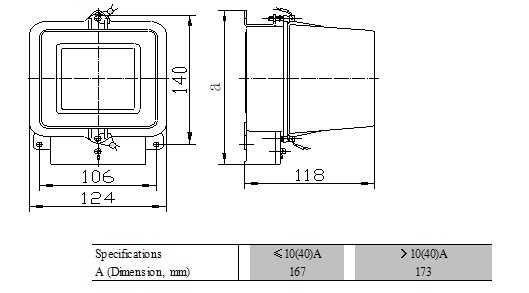

Outline Dimensions Length×Width×Height (mm) |
Installation Dimensions Length×Width (mm) | Case Material |
| DD862 | 1.5（6）, 3（6）, 2.5（10）, 5（20）, 10（40） | 167×124×118 | 140×106 | Metal case |
| 15（60）, 20（80）, 30（100） | 173×124×118 |
