Product Name	Working Voltage	Specifications	0utput voltage
JKL2C	M	4	DC
	M: 220V	4: 4 sets of output circuit 6: 6 sets of output circuit 8: 8 sets of output circuit 10: 10 sets of output circuit 12: 12 sets of output circuit	Default: Normal DC: DC12V

Ordering Example:

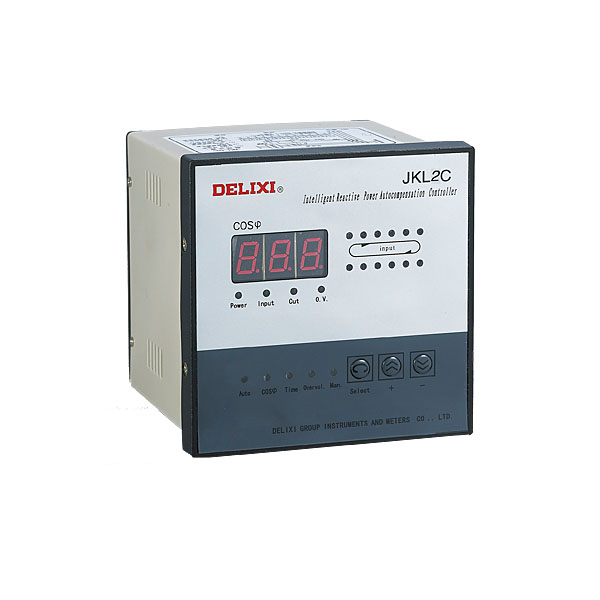

The ordering number for Model JKL2C Intelligent Reactive Power Automatic Compensation Controller of 220V voltage with 4 sets of output circuit and common-use output voltage is JKL2CM4.



■ It is used together with capacitor compensation cabinet to compensate for reactive power. It is applicable to single-phase power grid of 50-60Hz frequency & AC220V rated voltage. It can be used for split-phase compensation.

■Switch on/off threshold beyond 1.00 power factor, if necessary, for a wider range of application of the product.

■The circuit setting function enables the user to output circuit number according to actual needs for convenience of his use.

■Automatic phase detection. Easy and flexible connection for installation, adjustment and a wide rangeof application occasions.

■The product is controlled by MCU, and over-compensation, under-compensation, over-voltage, under-voltage, under-current and etc. of the power grid can be automatically displayed and handled.

■The product has features of strong anti-interference capability and WDT automatic reset for stable and reliable operation.

■Intelligent software against "invalid switch", which is a design defect of conventional products.

■DC-output-type products can be selected for "flexible compensation" free from impact.



■ Sampling Voltage (V) :  220 ± 15%

■ Sampling Current (A) :  n/5A  ( Is≤5A )

■ Frequency (Hz) :  50～60

■ Switch On Threshold: 0.80～-0.92

■ Switch Off Threshold:   -0.90～0.82

■ Working Method:  Continuous Working and Circulative Operation Way

■ Output Circuit Number:  1～12 sets of output circuit (Adjustable)

■ Compensation Method:  split-phase compensation

■ Dielectric Strength (V) :  Power Frequency 2500

■ Protection Class:  Case  Protection Class IP30

■ Whole Machine Power (W) :  ≤15

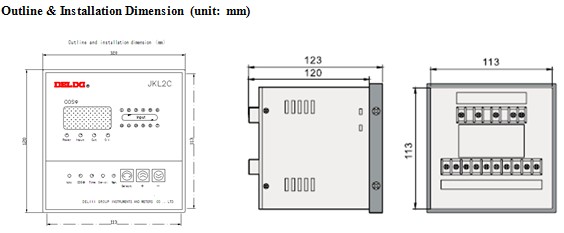

■Hole size (mm): 113×113

■ Weight (kg) :  ＜ 1.5

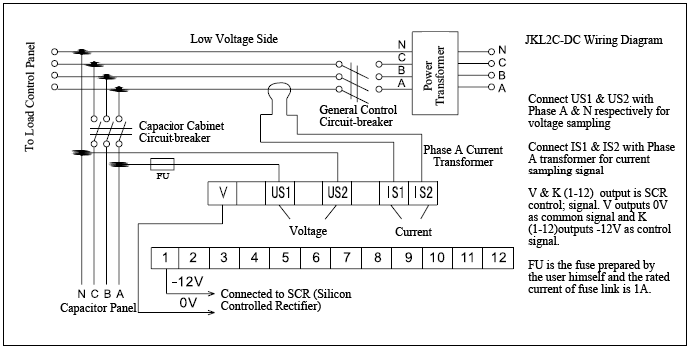

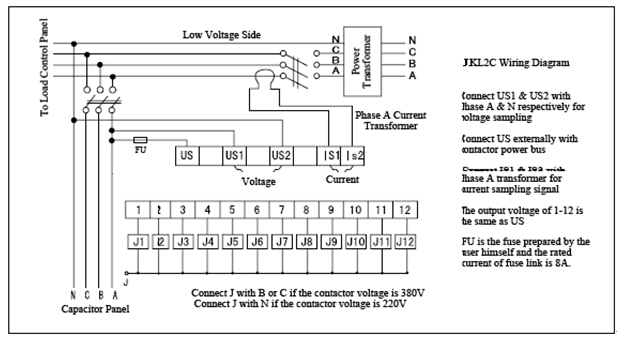

Wiring Diagram
